How pattern matching works

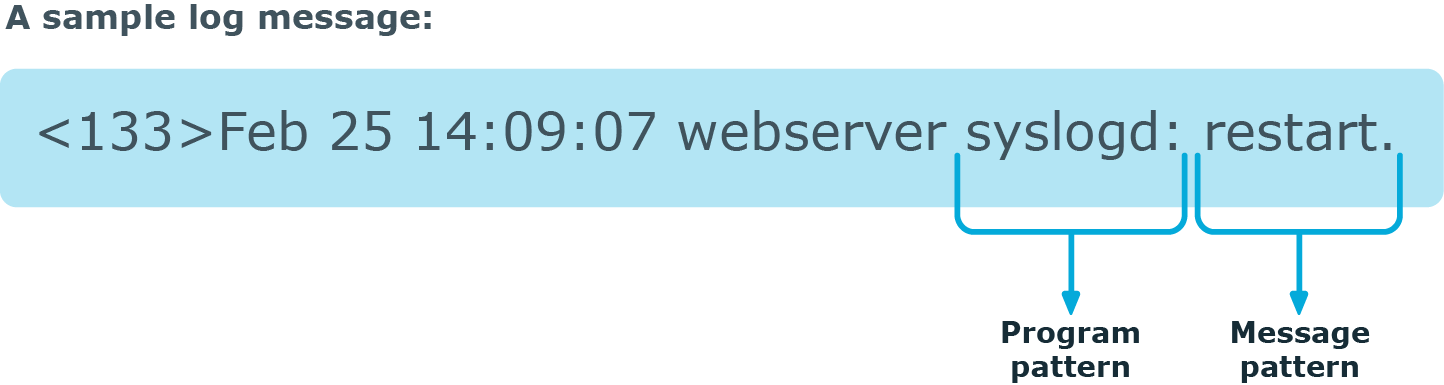

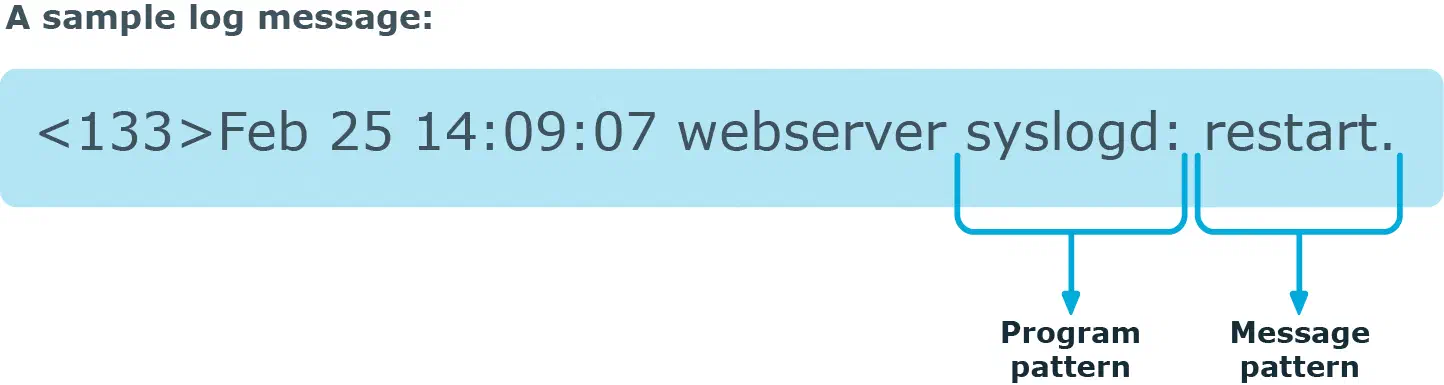

The followings describe how patterns work. This information applies to program patterns and message patterns alike, even though message patterns are used to illustrate the procedure.
Patterns can consist of literals (keywords, or rather, keycharacters) and pattern parsers. Pattern parsers attempt to parse a sequence of characters according to certain rules.
NoteWildcards and regular expressions cannot be used in patterns. The
@character must be escaped, that is, to match for this character, you have to write
@@in your pattern. This is required because pattern parsers are enclosed between
When a new message arrives, AxoSyslog attempts to classify it using the pattern database. The available patterns are organized alphabetically into a tree, and AxoSyslog inspects the message character-by-character, starting from the beginning. This approach ensures that only a small subset of the rules must be evaluated at any given step, resulting in high processing speed. Note that the speed of classifying messages is practically independent from the total number of rules.
For example, if the message begins with the
Apple string, only patterns beginning with the character
A are considered. In the next step, AxoSyslog selects the patterns that start with
Ap, and so on, until there is no more specific pattern left. The AxoSyslog application has a strong preference for rules that match the input string completely.
Note that literal matches take precedence over pattern parser matches: if at a step there is a pattern that matches the next character with a literal, and another pattern that would match it with a parser, the pattern with the literal match is selected. Using the previous example, if at the third step there is the literal pattern
Apport and a pattern parser
Apport pattern is matched. If the literal does not match the incoming string (for example,
Apple), AxoSyslog attempts to match the pattern with the parser. However, if there are two or more parsers on the same level, only the first one will be applied, even if it does not perfectly match the message.
If there are two parsers at the same level (for example,
Ap@QSTRING@), it is random which pattern is applied (technically, the one that is loaded first). However, if the selected parser cannot parse at least one character of the message, the other parser is used. But having two different parsers at the same level is extremely rare, so the impact of this limitation is much less than it appears.
