Google

1 - BigQuery

Axoflow will soon support sending data to Google BigQuery using a high-performance gRPC-based destination. Alternatively, you can set up AxoRouter to send data through a Google Pub/Sub destination.

If you’d like to send data from AxoRouter to this destination, contact our support team for details.

2 - Google Cloud Pub/Sub

Google Cloud Pub/Sub: Asynchronous messaging service for ingesting and distributing event data between services and applications.

To add a Google Cloud Pub/Sub destination to Axoflow, complete the following steps. Axoflow can send data to Google Cloud Pub/Sub using its gRPC interface.

Prerequisites

For details, see the Google Pub/Sub tutorial.

Steps

  1. Create a new destination.

    1. Open the AxoConsole.
    2. Select Destinations > + Add Destination.

  2. Configure the destination.

    1. Select Pub/Sub.

    2. Select which type of configuration you want to use:

      • Simple: Send all data into a project and topic.
      • Dynamic: Send data to a project and topic based on the content or metadata of the incoming messages (or to a default project/topic).

    3. Enter a name for the destination.

      Configure the Google Pub/Sub destination

    4. Specify the project and topic to send the data to.

      • Simple: Enter the ID of the GCP Project and the Topic. All data will be sent to this topic.
      • Dynamic: Enter the expression that specifies the default Project and Topic. The data will be sent here unless it is set during the processing of the message (for example, by the processing steps of the Flow).

      You can use AxoSyslog macros in this field.

    5. Configure the authentication method to access the GCP project.

      • Automatic (ADC): Use the service account attached to the cloud resource (VM) that hosts AxoRouter.

      • Service Account File: Specify the path where a service account key file is located (for example, /etc/axorouter/user-config/). You must manually copy that file to its place, currently you can’t distribute it from Axoflow.

      • None: Disable authentication completely. Only available when the More options > Service Endpoint option is set.

        CAUTION:

        Do not disable authentication in production.

    6. (Optional) Set other options as needed for your environments.

      • Service Endpoint: Use a custom API endpoint. Leave it empty to use the default: https://pubsub.googleapis.com

      • Disk Buffer: Explicitly enable or disable disk buffer on AxoRouter. Default value: Enabled.

        AxoRouter can store messages on the local disk if the destination or the network connection to the destination becomes unavailable. AxoRouter automatically sends the stored messages (in the order they were received) to the destination when the connection is reestablished. Note that the disk buffer is separate from AxoStore.

        Capacity Bytes: Size of the disk buffer files in bytes. This value applies for each worker. Default value is 100MiB (104857600 bytes), which is also the recommended minimum.

        The disk required for using disk buffering is Capacity Bytes*Number of Workers for each destination of AxoRouter.

      • Batch Bytes: Sets the maximum size of payload in a batch. If the size of the messages reaches this value, AxoRouter sends the batch to the destination even if the number of messages is less than the value of the batch lines option.

        CAUTION:

        When setting Batch Bytes:

        • Note that the actual HTTP request will be about 4KB larger because of the request headers.
        • Check the configuration of your destination, as SaaS solutions and ingress controllers often limit the maximal size of HTTP requests. If the sum of Batch Bytes and the request headers exceeds this limit, the data will be rejected. (In case of NGINX, with a client intended to send too large body error message.)

      • Batch Lines: Number of lines sent to the destination in one batch. AxoRouter waits for this number of lines to accumulate and sends them off in a single batch. Increasing this number increases throughput as more messages are sent in a single batch, but also increases message latency. For more details, see the AxoSyslog documentation.

      • Batch Timeout: Maximal time in milliseconds to wait for a batch to be filled before sending it. The default value (-1) means that the batch should be full before sending, which may result in a long wait if the incoming traffic is low. For more details, see the AxoSyslog documentation.

      • Number of Workers: Used for scaling the destination in case of high message load. Specifies the number of worker threads AxoRouter uses for sending messages to the destination. The default is 1. If high message throughput is not a concern, leave it on 1. For maximum performance, increase it up to the number of CPU cores available on AxoRouter. For more details, see the AxoSyslog documentation.

    7. Select Add.

  3. Create a flow to connect the new destination to an AxoRouter instance.

    1. Select Flows.

    2. Select Add Flow.

    3. Enter a name for the flow, for example, my-test-flow.

      Create a flow

    4. In the Router Selector field, enter an expression that matches the router(s) you want to apply the flow. To select a specific router, use a name selector, for example, name = my-axorouter-hostname.

      You can use any labels and metadata of the AxoRouter hosts in the Router selectors, for example, the hostname of the AxoRouter, or any custom labels.

      • If you leave the Router Selector field empty, the selector will match every AxoRouter instance.
      • To select only a specific AxoRouter instance, set the name field to the name of the instance as selector. For example, name = my-axorouter.
      • If you set multiple fields in the selector, the selector will match only AxoRouter instances that match all elements of the selector. (There in an AND relationship between the fields.)

    5. Select the Destination where you want to send your data. If you don’t have any destination configured, you can select + Add in the destination section to create a new destination now. For details on the different destinations, see Destinations.

      • If you don’t have any destination configured, see Destinations.
      • If you’ve already created a store, it automatically available as a destination. Note that the Router Selector of the flow must match only AxoRouters that have the selected store available, otherwise you’ll get an error message.
      • If you want to send data to another AxoRouter, enable the Show all destinations option, and select the connector of the AxoRouter where you want to send the data.

      AxoRouter as destination

    6. (Optional) To process the data transferred in the flow, select Add New Processing Step. For details, see Processing steps. For example:

      1. Add a Classify, a Parse, and a Reduce step, in that order, to automatically remove redundant and empty fields from your data.
      2. To select which messages are processed by the flow, add a Select Messages step, and enter a filter into the AQL Expression field. For example, to select only the messages received from Fortinet FortiGate firewalls, use the meta.vendor = fortinet AND meta.product = fortigate query.
      3. Save the processing steps.

      Example processing steps

    7. Select Add.

    8. The new flow appears in the Flows list.

      The new flow

Pub/Sub attributes

You can embed custom attributes as metadata in Pub/Sub messages in the processing steps of the Flow that’s sending data to the Pub/Sub destination.

To do that:

  1. Add a FilterX processing step to the Flow.

  2. Edit the Statements field of the processing step:

    1. Add the meta.pubsub.attributes = json(); line to add an empty JSON object to the messages.

    2. Set your custom attributes under the meta.pubsub.attributes key. For example, if you want to include the timestamp as a custom attribute as well, you can use:

      meta.pubsub.attributes = {"timestamp": $S_ISODATE};

You can use the following message fields to modify messages sent to this destination using processing steps.

3 - Google Security Operations (SecOps)

Google Security Operations (SecOps): A cloud service designed for enterprises to privately retain, analyze, and search the massive amounts of security and network telemetry they generate.

To add a Google Security Operations (SecOps) destination to Axoflow, complete the following steps.

Prerequisites

Steps

  1. Create a new destination.

    1. Open the AxoConsole.
    2. Select Destinations > + Add Destination.

  2. Configure the destination.

    1. Select SecOps.

    2. Select which type of configuration you want to use:

      • Simple: Send all data into a namespace with a single log type.
      • Dynamic: Send data to a namespace with a log type based on the content or metadata of the incoming messages (or to a default namespace/log type).
      • Advanced: Specify the full endpoint URL.

    3. Enter a name for the destination.

      Configure the Google SecOps destination

    4. Enter the URL endpoint for the destination.

      • Simple and Dynamic: Enter base URL for the regional service endpoint to use into the Service Endpoint field, for example, https://malachiteingestion-pa.googleapis.com for the US region.
      • Advanced: Enter the full URL to use for ingesting logs into the Endpoint URL field, for example, https://malachiteingestion-pa.googleapis.com/v2/unstructuredlogentries:batchCreate.

    5. Specify the log type to send the data to.

      • Simple and Advanced: Enter the Log type to assign to the data. All data will be assigned the specified log type.
      • Dynamic: Enter the Default log type. The data will be sent with the specified log type unless it is set during the processing of the message (for example, by the automatic classification, or the processing steps of the Flow).

      You can use AxoSyslog macros in this field.

    6. Enter the unique ID of your Google SecOps instance into the Customer ID field.

    7. (Optional) Specify the namespace to send the data to. Usually it’s not needed to use namespaces.

      • Simple and Advanced: Enter the Namespace where to send the data. All data will be sent to this namespace.
      • Dynamic: Enter the Default namespace. The data will be sent into this namespace unless it is set during the processing of the message (for example, by the processing steps of the Flow).

      You can use AxoSyslog macros in this field.

    8. Configure the authentication method to access the GCP project.

      • Automatic (ADC): Use the service account attached to the cloud resource (VM) that hosts AxoRouter.
      • Service Account File: Specify the path where a service account key file is located (for example, /etc/axorouter/user-config/serviceaccount.json). You must manually copy that file to its place, currently you can’t distribute it from Axoflow.

    9. (Optional) Set other options as needed for your environments.

      • Timeout: The number of seconds to wait for a log-forwarding request to complete, and attempt to reconnect the server if exceeded. If the timeout is exceeded, AxoRouter attempts to reconnect the destination. The default (0) is unlimited. For more details, see the AxoSyslog documentation.

      • Disk Buffer: Explicitly enable or disable disk buffer on AxoRouter. Default value: Enabled.

        AxoRouter can store messages on the local disk if the destination or the network connection to the destination becomes unavailable. AxoRouter automatically sends the stored messages (in the order they were received) to the destination when the connection is reestablished. Note that the disk buffer is separate from AxoStore.

        Capacity Bytes: Size of the disk buffer files in bytes. This value applies for each worker. Default value is 100MiB (104857600 bytes), which is also the recommended minimum.

        The disk required for using disk buffering is Capacity Bytes*Number of Workers for each destination of AxoRouter.

      • Batch Bytes: Sets the maximum size of payload in a batch. If the size of the messages reaches this value, AxoRouter sends the batch to the destination even if the number of messages is less than the value of the batch lines option.

        CAUTION:

        When setting Batch Bytes:

        • Note that the actual HTTP request will be about 4KB larger because of the request headers.
        • Check the configuration of your destination, as SaaS solutions and ingress controllers often limit the maximal size of HTTP requests. If the sum of Batch Bytes and the request headers exceeds this limit, the data will be rejected. (In case of NGINX, with a client intended to send too large body error message.)

      • Batch Lines: Number of lines sent to the destination in one batch. AxoRouter waits for this number of lines to accumulate and sends them off in a single batch. Increasing this number increases throughput as more messages are sent in a single batch, but also increases message latency. For more details, see the AxoSyslog documentation.

      • Batch Timeout: Maximal time in milliseconds to wait for a batch to be filled before sending it. The default value (-1) means that the batch should be full before sending, which may result in a long wait if the incoming traffic is low. For more details, see the AxoSyslog documentation.

      • Number of Workers: Used for scaling the destination in case of high message load. Specifies the number of worker threads AxoRouter uses for sending messages to the destination. The default is 1. If high message throughput is not a concern, leave it on 1. For maximum performance, increase it up to the number of CPU cores available on AxoRouter. For more details, see the AxoSyslog documentation.

    10. Select Add.

  3. Create a flow to connect the new destination to an AxoRouter instance.

    1. Select Flows.

    2. Select Add Flow.

    3. Enter a name for the flow, for example, my-test-flow.

      Create a flow

    4. In the Router Selector field, enter an expression that matches the router(s) you want to apply the flow. To select a specific router, use a name selector, for example, name = my-axorouter-hostname.

      You can use any labels and metadata of the AxoRouter hosts in the Router selectors, for example, the hostname of the AxoRouter, or any custom labels.

      • If you leave the Router Selector field empty, the selector will match every AxoRouter instance.
      • To select only a specific AxoRouter instance, set the name field to the name of the instance as selector. For example, name = my-axorouter.
      • If you set multiple fields in the selector, the selector will match only AxoRouter instances that match all elements of the selector. (There in an AND relationship between the fields.)

    5. Select the Destination where you want to send your data. If you don’t have any destination configured, you can select + Add in the destination section to create a new destination now. For details on the different destinations, see Destinations.

      • If you don’t have any destination configured, see Destinations.
      • If you’ve already created a store, it automatically available as a destination. Note that the Router Selector of the flow must match only AxoRouters that have the selected store available, otherwise you’ll get an error message.
      • If you want to send data to another AxoRouter, enable the Show all destinations option, and select the connector of the AxoRouter where you want to send the data.

      AxoRouter as destination

    6. (Optional) To process the data transferred in the flow, select Add New Processing Step. For details, see Processing steps. For example:

      1. Add a Classify, a Parse, and a Reduce step, in that order, to automatically remove redundant and empty fields from your data.
      2. To select which messages are processed by the flow, add a Select Messages step, and enter a filter into the AQL Expression field. For example, to select only the messages received from Fortinet FortiGate firewalls, use the meta.vendor = fortinet AND meta.product = fortigate query.
      3. Save the processing steps.

      Example processing steps

    7. Select Add.

    8. The new flow appears in the Flows list.

      The new flow

You can use the following message fields to modify messages sent to this destination using processing steps.

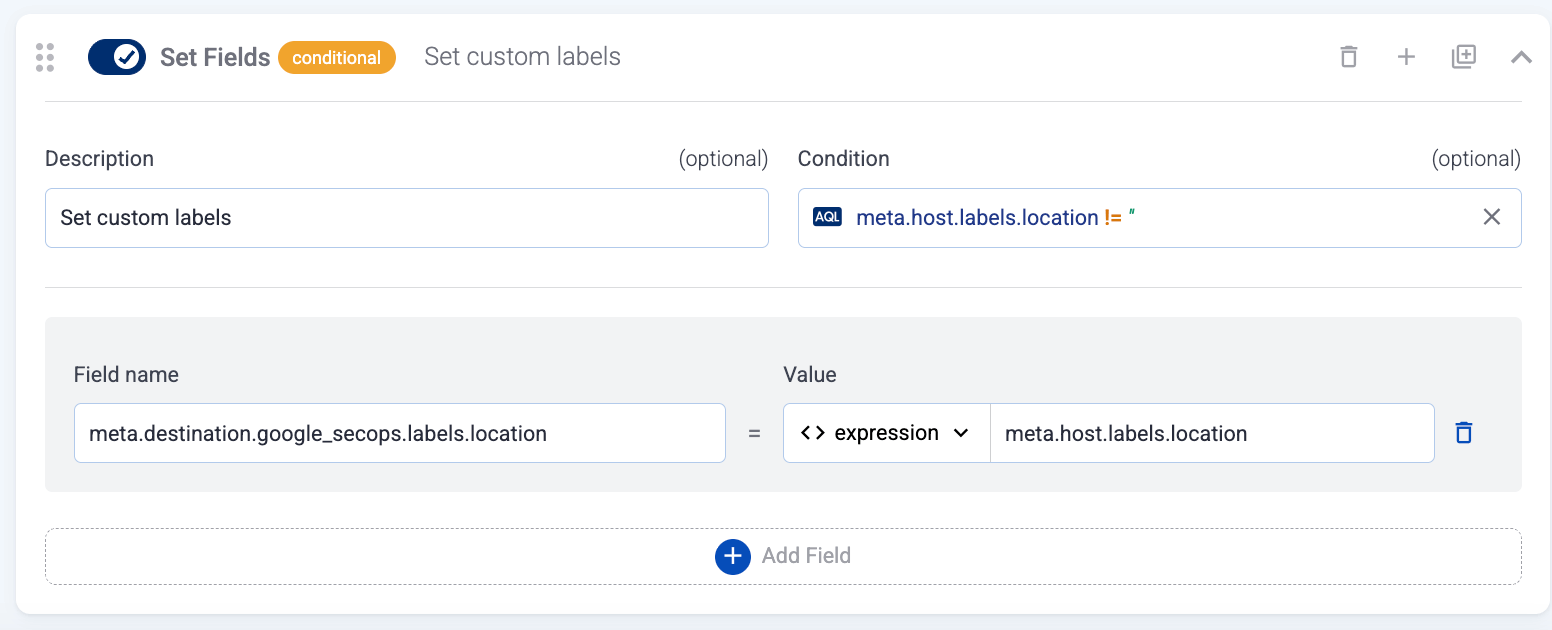

For example, you can add your custom labels using a Set Fields processing step to meta.destination.google_secops.labels:

Forwarding custom labels to Google SecOps

Note that sending custom labels to SecOps can have significant performance impact. Make sure to increase the number of workers (More options > Number of Workers), ideally to have at least one worker for each custom label.
